基本數據
|
|
型號
|
額定電壓(KV)
|
熔體額定電流(A)
|
額定開斷電流
(KA)
|
外形尺寸
(mm)
|
(圖1)
|
重量
(Kg)
|
|
國外
|
部頒
|
|
ADFH
|
XRNT1
|
3.6
|
6.3 10 16 20 31.5 40
|
31.5
|
51
|
254
|
1.5
|
|
ADGH
|
XRNT1
|
3.6
|
6.3 10 16 20 31.5 40 50 63 80 100
|
31.5
|
51
|
359
|
2.0
|
|
ADFH
|
XRNT1
|
7.2
|
6.3 10 16 20 31.5 40 50 63
|
20
|
51
|
254
|
1.5
|
|
AFFH
|
XRNT1
|
7.2
|
80 100
|
31.5
|
76
|
254
|
2.3
|
|
BDGH
|
XRNT1
|
7.2
|
6.3 10 16 20 31.5 40 50 63 80
|
31.5
|
51
|
359
|
2.0
|
|
BFGH
|
XRNT1
|
7.2
|
90 100 125 140 160
|
31.5
|
76
|
359
|
4.0
|
|
ADFH
|
XRNT1
|
12
|
6.3 10 16 20 25 31.5
|
12
|
51
|
245
|
1.5
|
|
BDGH
|
XRNT1
|
12
|
6.3 10 16 20 25 31.5 40 45 50
|
31.5
|
51
|
359
|
2.0
|
|
BFGH
|
XRNT1
|
12
|
56 63 71 80 90 100
|
31.5
|
76
|
359
|
4.0
|
|
AKGH
|
XRNT1
|
12
|
112 125
|
31.5
|
76
|
359
|
4.0
|
|
ADIH
|
XRNT1
|
24
|
6.3 10 16 20 25 31.5
|
12
|
51
|
565
|
3.0
|
|
AFIH
|
XRNT1
|
24
|
40 50 63 80 90
|
16
|
76
|
565
|
6.1
|
|
ADIH
|
XRNT1
|
40.5
|
3.15 5 6.3 10 16 20 25 31.5
|
16
|
51
|
565
|
3.0
|
|
AFIH
|
XRNT1
|
40.5
|
40
|
25
|
76
|
565
|
6.1
|
|
AFKH
|
XRNT1
|
40.5
|
50 63 71
|
25
|
76
|
914
|
9.7
|
|
|
注：在規定的使用條件下，熔斷器*小開斷電流為熔斷器額定的2.5～3倍。
|
|
|
|
A/B型變壓器保護用高分?jǐn)嗄芰Ω邏合蘖魅蹟嗥髋c變壓器保護配套
|
|
變壓器容量
|
變壓器初級電壓 6.6KV
|
變壓器初級電壓 10KV
|
|
熔斷器型號
|
額定電流A
|
熔斷器型號
|
額定電流A
|
|
200
|
BDGH-12KV
|
31.5
|
BDGH-12KV
|
20
|
|
250
|
BDGH-12KV
|
40
|
BDGH-12KV
|
25
|
|
300/315
|
BDGH-12KV
|
50
|
BDGH-12KV
|
31.5
|
|
400
|
BDGH-12KV
|
63
|
BDGH-12KV
|
40
|
|
500
|
BDGH-12KV
|
80
|
BDGH-12KV
|
50
|
|
630
|
BDGH-12KV
|
100
|
BDGH-12KV
|
63
|
|
750/800
|
BDGH-7.2KV
|
125
|
BDGH-12KV
|
71
|
|
1000
|
BDGH-7.2KV
|
140
|
BDGH-12KV
|
90
|
|
1250
|
BDGH-7.2KV
|
160
|
AKGH-12KV
|
112
|
|
1500/1600
|
BDGH-7.2KV
|
160
|
AKGH-12KV
|
125
|
|
|
|
|

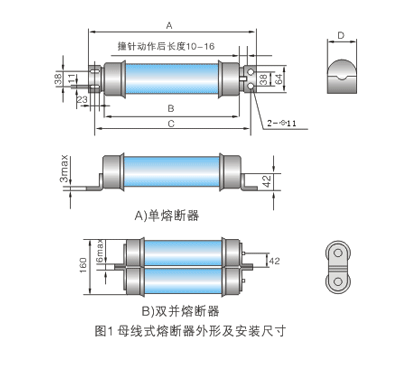

外形及安裝尺寸
|
|
